Buffer Tank Sunsystem, Model P 500, Capacity 500L Vessel

Buffer Tank Sunsystem, Model P 500, Capacity 500L Vessel

Saving energy and money is achieved using buffer vessels of the Sunsystem P series in the central heating system.

  • Stock: In Stock
  • Brand: Sunsystem
  • SKU: 01.409.002
£648.00
Excl. VAT
Estimated delivery
05.Dec.2024
DHL Schenker
See Shipping Policy

Free return
​60 daysSee details

We accept payments
    See details

Accumulates the heat generated by solid fuel boiler, solar heater, heat pump or any other source; recommended for every central heating system.

Ensures the optimum operation and efficiency of a solid fuel boiler, permitting the functioning at nominal power output, even when the heating of the premisses does not require all the heat energy produced thereby.
Produced heat is accumulated and stored inside the buffer tank like hot water and can be used even when the boiler itself has cooled down.


Modifications and sizes, in liters:
300, 500, 800, 1000, 1500, 2000, 2500, 3000, 5000

Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:


Class C - capacity from 300 to 5000 Liters;

Product  features:

  • Removable high efficiency insulation with thickness 100 mm and outer casing of PVC with RAL 9006 color
  • Multi-position mounting of temperature sensor
  • Primer coated on the outside of the tank
  • All threads are internal
  • inlet / Outlet connections - at 180 degrees
  • Easy installation
  • Optional kit for electric heating with nominal power  3kW, 4.5kW, 6kW or 7.5kW

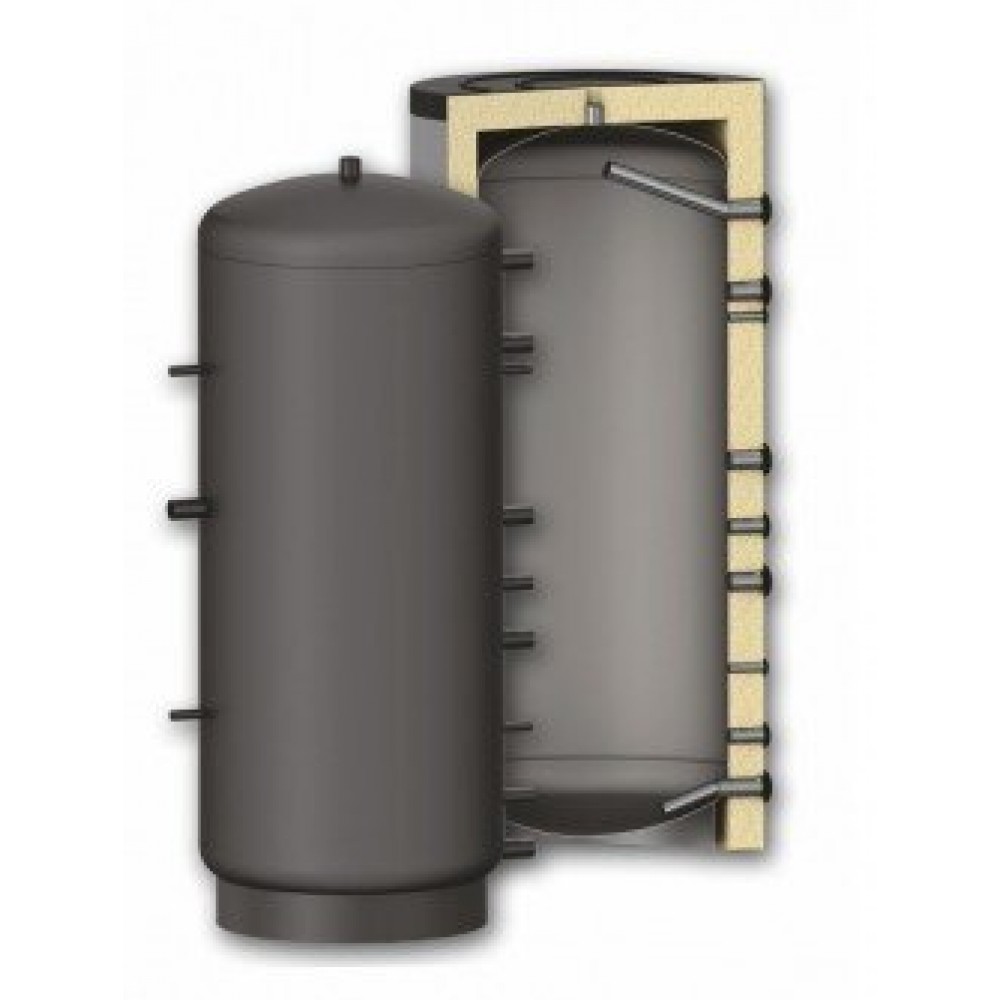

1. Aesthetic PVC jacket with color RAL 9006
2. Primer coated outer surface
3. Removable insulation
4. Water tank of low-carbon steel


Characteristics
Weight (kg) 99.0000
Country of Manufacture Bulgaria
Dimension Height (mm) 1660
Warranty 2 Years
Certification CE
Thermometer Optional
Energy efficiency class C
Water capacity/content (L) 500
Installation Free standing
Heat exchanger coil No heat exchanger
Height without insulation (mm) 1610
Diameter (mm) 850
Diameter without insulation (mm) 650
Minimum vertical clearance (mm) 1640
Insulation weight (kg) 12.3
Maximum buffer operating temperature (°C) 95
Sensor sleeve A (mm) G 1/2'' / 410
Electric heating element B (mm) G 1 1/2'' / 790
Sensor sleeve C (mm) G 1/2'' / 1120
Air vent sleeve D (mm) G 1 1/2'' / 1610
Boiler heat carrier E (mm) G 1 1/2'' / 1370
Sensor sleeve G (mm) G 1/2'' / 1120
Boiler heat carrier H (mm) G 1 1/2'' / 990
Boiler heat carrier J (mm) G 1 1/2'' / 880
Heat carrier inlet L (mm) G 1'' / 770
Boiler heat carrier M (mm) G 1 1/2'' / 620
Sensor sleeve N (mm) G 1/2'' / 460
Heat carrier outlet O (mm) G 1'' / 250
Boiler heat carrier outlet P (mm) G 1 1/2'' / 150
Buffer operating pressure (bar) 3
Type File Information
User manual_Sunsystem.pdf 6.4MB
Energy efficiency label_Sunsystem P 500.pdf 26.13KB
