Buffer Tank Sunsystem, Model P 300, Capacity 300L Vessel

Buffer Tank Sunsystem, Model P 300, Capacity 300L Vessel

Saving energy and money is achieved using buffer vessels of the Sunsystem P series in the central heating system.

  • Stock: In Stock
  • Brand: Sunsystem
  • SKU: 01.409.001
£461.00
Excl. VAT
Estimated delivery
27.Nov.2024
DHL Schenker
See Shipping Policy

Free return
​60 daysSee details

We accept payments
    See details

Accumulates the heat generated by solid fuel boiler, solar heater, heat pump or any other source; recommended for every central heating system.
Ensures the optimum operation and efficiency of a solid fuel boiler, permitting the functioning at nominal power output, even when the heating of the premisses does not require all the heat energy produced thereby.
Produced heat is accumulated and stored inside the buffer tank like hot water and can be used even when the boiler itself has cooled down.


Modifications and sizes, in liters:
300, 500, 800, 1000, 1500, 2000, 2500, 3000, 5000





Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:


Class C - capacity from 300 to 5000 Liters;

Product  features:

  • Removable high efficiency insulation with thickness 100 mm and outer casing of PVC with RAL 9006 color
  • Multi-position mounting of temperature sensor
  • Primer coated on the outside of the tank
  • All threads are internal
  • inlet / Outlet connections - at 180 degrees
  • Easy installation
  • Optional kit for electric heating with nominal power  3kW, 4.5kW, 6kW or 7.5kW

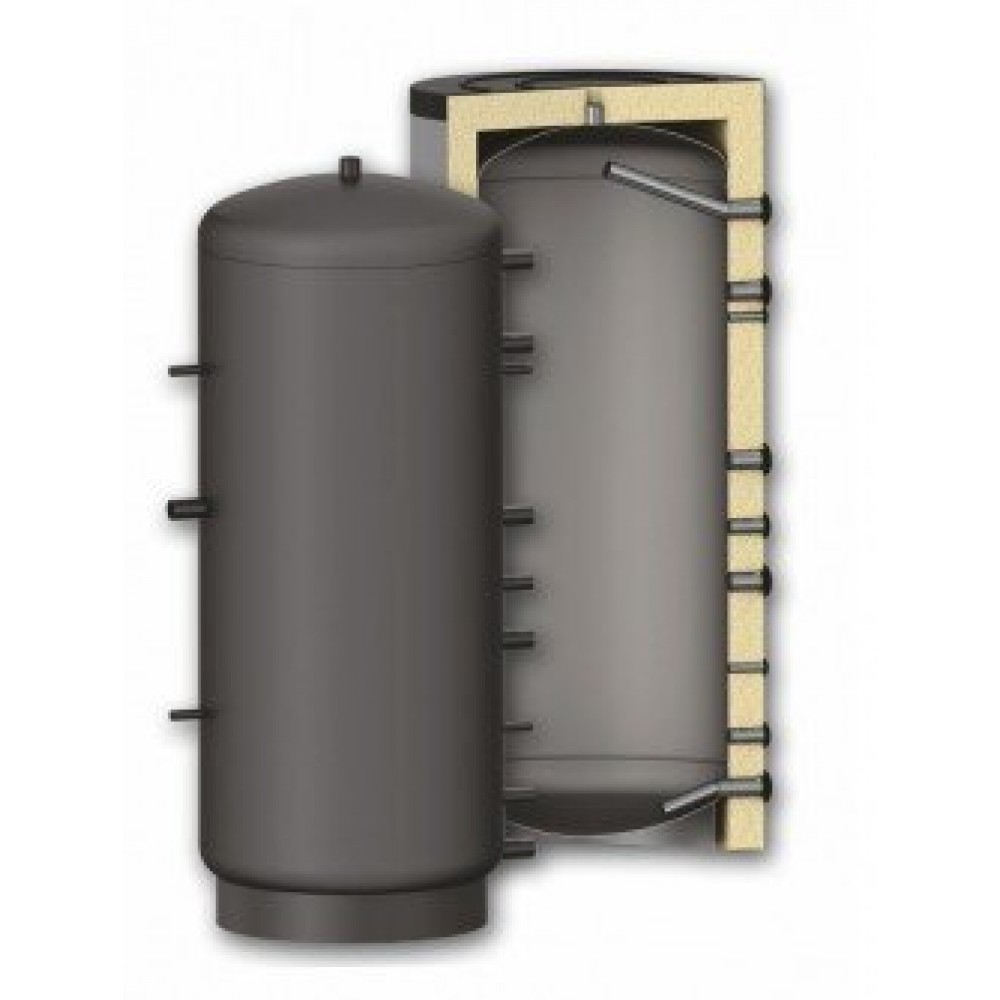

1. Aesthetic PVC jacket with color RAL 9006
2. Primer coated outer surface
3. Removable insulation
4. Water tank of low-carbon steel


Characteristics
Weight (kg) 92.0000
Country of Manufacture Bulgaria
Dimension Height (mm) 1460
Warranty 2 Years
Operating pressure (bar) 3
Control unit No
Thermometer Optional
Energy efficiency class C
Water capacity/content (L) 300
Installation Free standing
Heat exchanger coil No heat exchanger
Height without insulation (mm) 1410
Diameter (mm) 750
Diameter without insulation (mm) 550
Minimum vertical clearance (mm) 1430
Insulation weight (kg) 9.5
Maximum buffer operating temperature (°C) 95

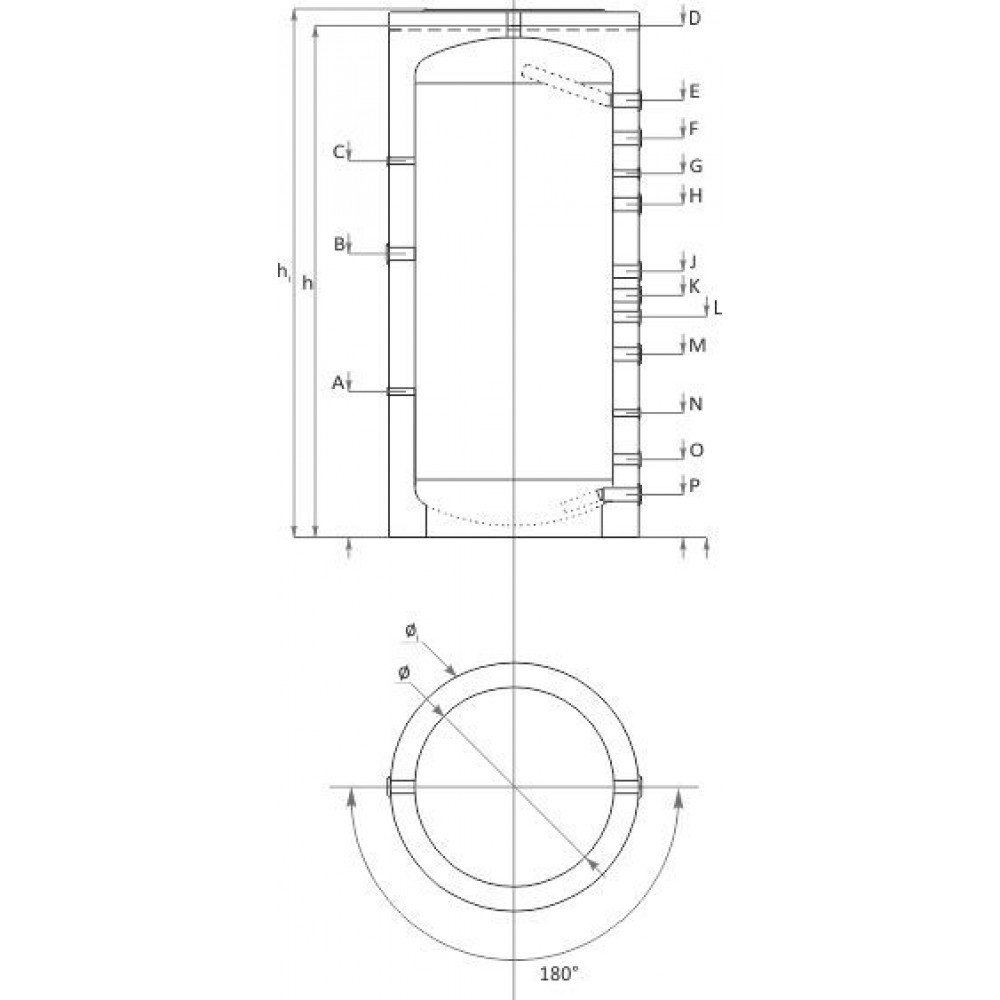

Sensor sleeve A (mm) G 1/2'' / 410
Electric heating element B (mm) G 1 1/2'' / 760
Sensor sleeve C (mm) G 1/2'' / 1060
Air vent sleeve D (mm) G 1 1/2'' / 1410
Boiler heat carrier E (mm) G 1 1/2'' / 1170
Sensor sleeve G (mm) G 1/2'' / 1010
Boiler heat carrier H (mm) G 1 1/2'' / 880
Boiler heat carrier J (mm) G 1 1/2'' / 770
Heat carrier inlet L (mm) G 1'' / 660
Boiler heat carrier M (mm) G 1 1/2'' / 540
Sensor sleeve N (mm) G 1/2'' / 420
Heat carrier outlet O (mm) G 1'' / 260
Boiler heat carrier outlet P (mm) G 1 1/2'' / 150
Type File Information
User manual_Sunsystem.pdf 6.4MB
