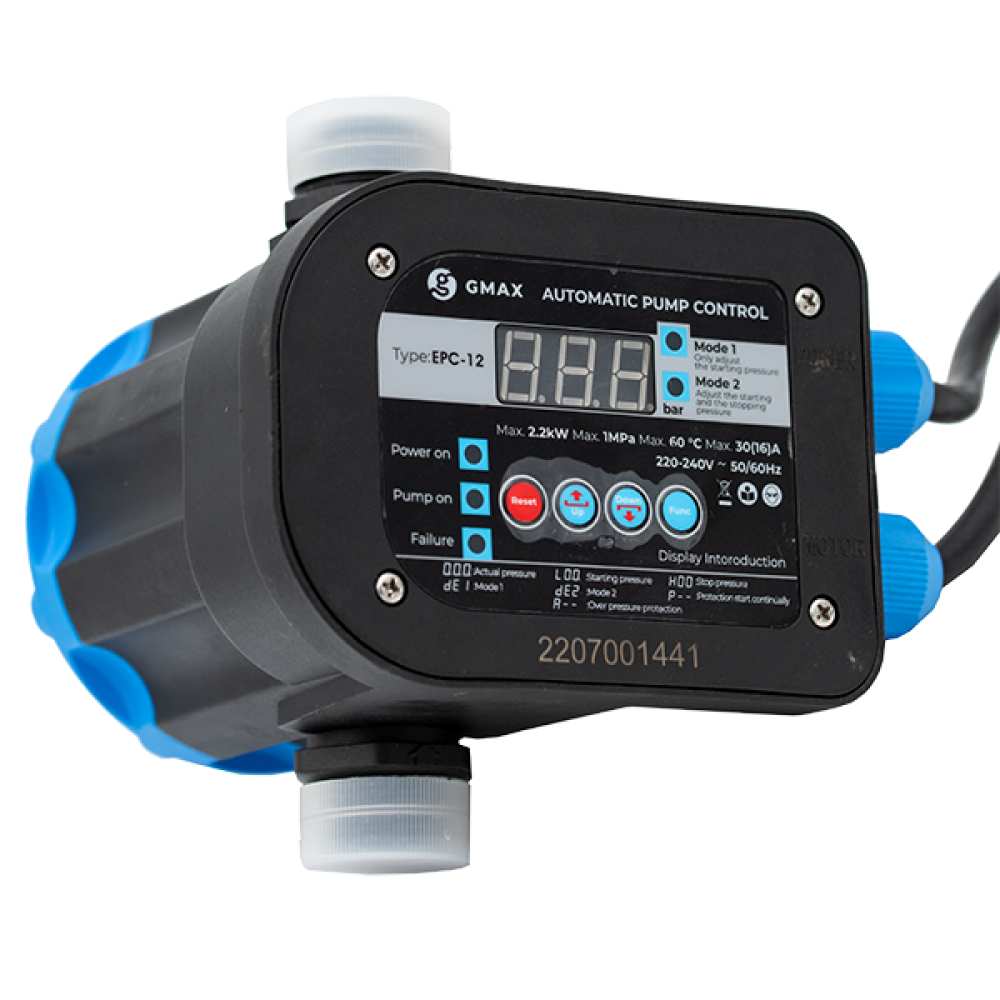

Pressure control EPC-12 with digital display and adjustable thresholds Gmax – size 1
Pressure control EPC-12 with digital display and adjustable thresholds Gmax – size 1
- Stock: In Stock
- Brand: Gmax
- SKU: 22.0026614
£45.95
Excl. VAT
Press control Gmax EPC-12 has a power of 2.2 kW. It has 2 functions, with the second one it is mandatory to have an expansion tank installed after the press control. It has a dry running protection function and automatic restart. It has overload protection, overpressure protection above 8 bar and protection against frequent pump starts with a short time interval. It is equipped with a digital display and limit adjustment.
Technical parameters:
- Power: 2.2 kW
- Voltage: 220-240V
- Frequency: 50-60 Hz
- Operating current: 30 A
- Factory starting pressure: 1.5 bar
- Maximum operating temperature: 55 °C
- Inlet/outlet: 1" male x male thread
- 2 functions:
- Function 1: Starting pressure setting: 0.8-6.7 bar
- Maximum pump pressure: 8 bar
- Function 2 (mandatory with a hydrophore vessel) individual setting of the lower and upper pressure limits at which the system operates:
- Min. pressure limit: 0.3 bar
- Max. upper limit: 7.5 bar
- Protection: IP65
- Cable length: 1 meter + plug
