Controller for pellet stoves.Mounted in EcoSpar and Burnit hydro models until 2015
Save 5% with bank transfer.
Free return
60 daysSee details
We accept payments
See details

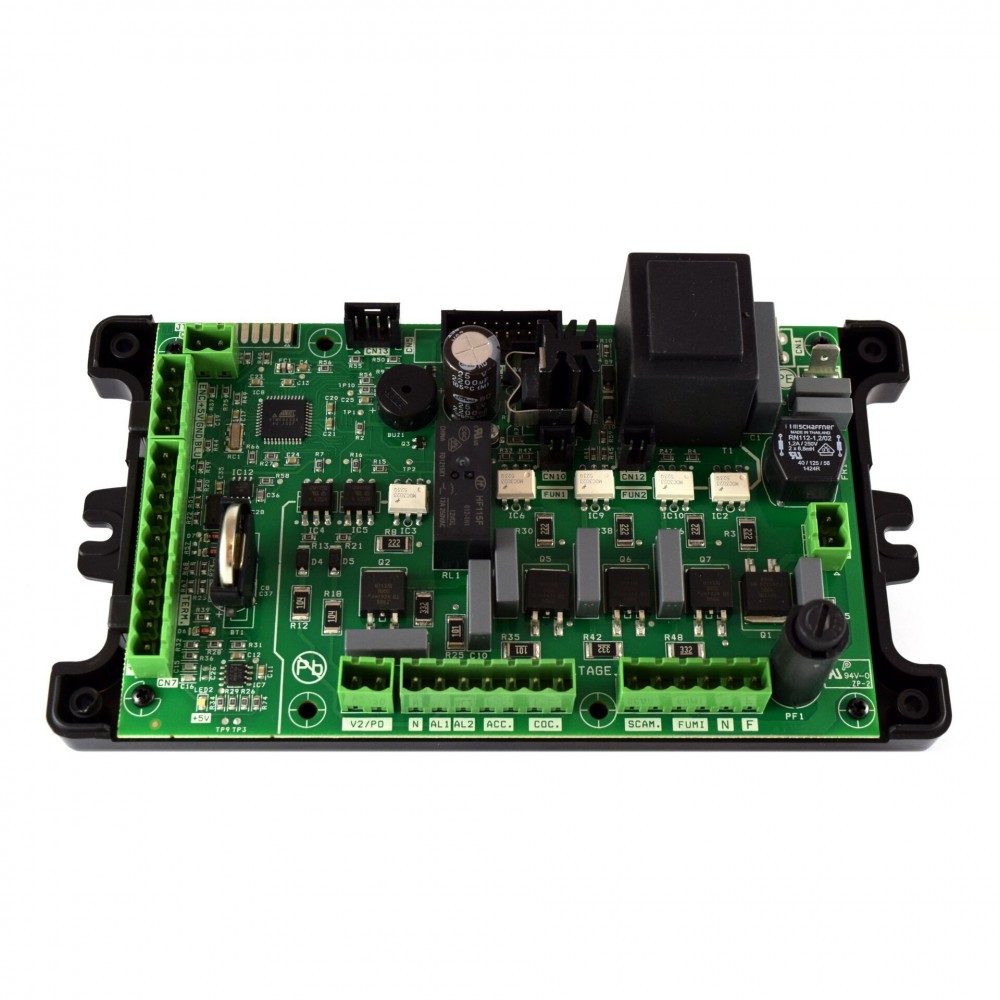

The controller consists of an electronic circuit board made up of a series of connectors that allow the board to be connected to various devices, which principally include:
– A Control Console, which comes in different versions and is highly customizable
– Sensors (temperature, ecc.)
– Fans
– Auger
– Ignition heaters
– Alarms
– Communication interfaces (RS232, Bluetooth, ecc.)
The device can be equipped with:
– IR remote control (through the console)
– ABS Container in standard version and self-extinguishing UL94 V0
– LCD console
This device is manufactured to meet the following regulations:
– EN 55011
– EN 61000-3-2
– IEC/EN 61000-4-2, -4, -5, -6, -8, -9, -11, -29
Characteristics | |
Weight (kg) | 0.5000 |
Dimensions [mm] | 161x102x37 |
Electric power supply (V/Hz) | 230/50 |
Frequency [Hz] | 50/60 |
Digital inputs | 6 |
Analog inputs | Yes |
Optically isolated digital inputs | 2 |
