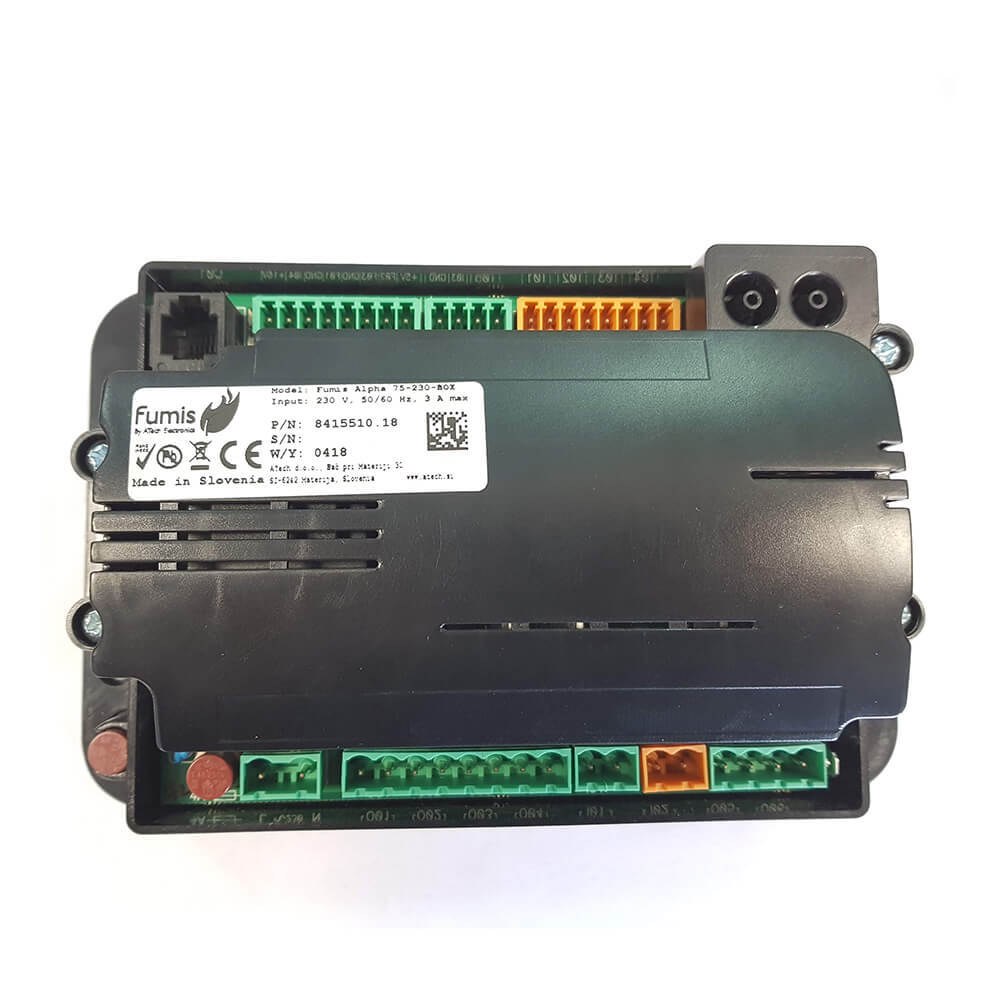

Mainboard Fumis Alpha 75 for pellet stoves Eco Spar Minima B 12kW

Name: ᐉ Mainboard Fumis Alpha 75 for pellet stoves Eco Spar Minima B 12kW – Top Prices | BalkanEnergy.CO.UK
Brand: Fumis
Price: 190.49 GBP
Availability: InStock

Mainboard Fumis Alpha 75 for pellet stoves Eco Spar Minima B 12kW | Electronics for Pellet Stoves | Pellet Stove Parts |

Mainboard Fumis Alpha 75 for pellet stoves Eco Spar Minima B 12kW

Mainboard for pellet stoves:

Models Solara 6kW, Tukana 8kW, Karina 10kW, Minima 12kW, Minima B 12kW, Alba 18kW, Alba B 18kW, Auriga 25kW and Auriga B 25kW by Eco Spar.

Warning! While the mainboard is also used for other brands and models of pellet stoves, BalkanEnergy has available software only for the models specified above.

Stock: In Stock
Brand: Fumis
SKU: 16.449.065

£190.49

Excl. VAT

Model

Minima B 12kW

Qty

Add to Cart

Inquiry

Add to Wish List Compare this Product

Estimated delivery
13.Jan.2025

See Shipping Policy

Free return
60 daysSee details

We accept payments
See details

Description
Characteristics

Fumis Alpha 75 is a combustion control solution for pellet stoves and boilers. Its characteristic and intuitive design and its customization options differentiate it from all competitors. The use of Flow-Control combustion control makes the devices using this controller model more efficient, saving more fuel and diminishing emissions. With Flow-Control the pellet stove (or pellet boiler) operates at optimum efficiency without fine-tuning at installation

Advantages

User friendly design;
More efficient combustion process;
Air flow meter which optimizes burning
Control of circulation pump;
Fuel-saving combustion;
Control of exhaust gas fan;
Control of ambient fan (for air pellet stoves);
Reduced emissions;
3 settings for pellet quality;
Weekly programmer;
Remote control;
Wi-Fi connectivity (optional).

Technical characteristics:

5 multifunction triac outputs 240VAC 1 A
1 relay output 240VAC 3A (700W max)
1 relay output 240VAC 1A (240W max)
2 multifunction inputs NTC 10k (water/air temperature sensors)
2 thermocouple input type K (combustion gases temperature sensors)
2 multifunction sensor input (fan speed sensor and pellet level)
2 multifunction digital iput (for external thermostat and open door)
1 modulated water pump output
2 safety input (safety temperature switch STB, safety pressure switch, 230 VAC)
serial communication connector

Characteristics
Weight (kg)	0.5000
Country of Manufacture	Slovenia
Warranty	6 months
Electric power supply (V/Hz)	230/50
Fuse [A]	4
Model	Minima B 12kW
Type	Mainboard
Digital inputs	2
Temperature sensor inputs	2
PWM outputs	1 (Circulation pump)
Compatibility	Eco Spar
