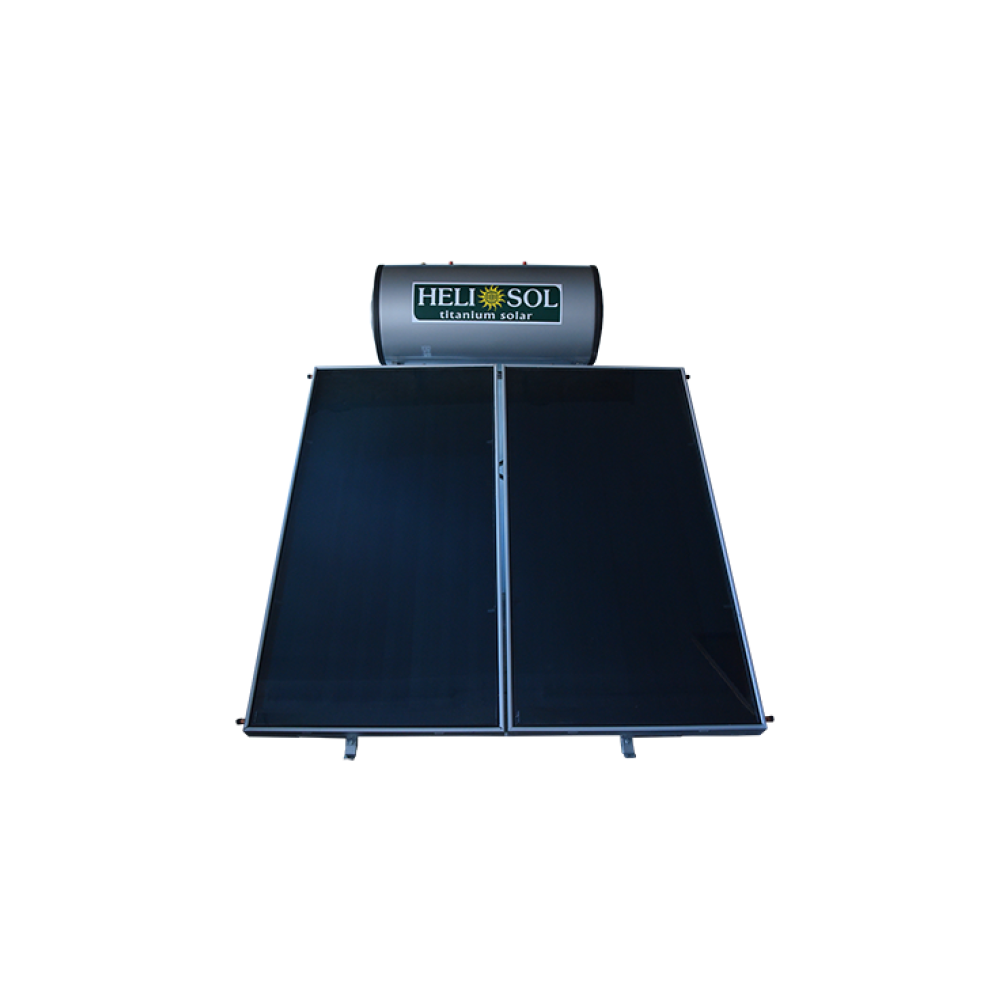

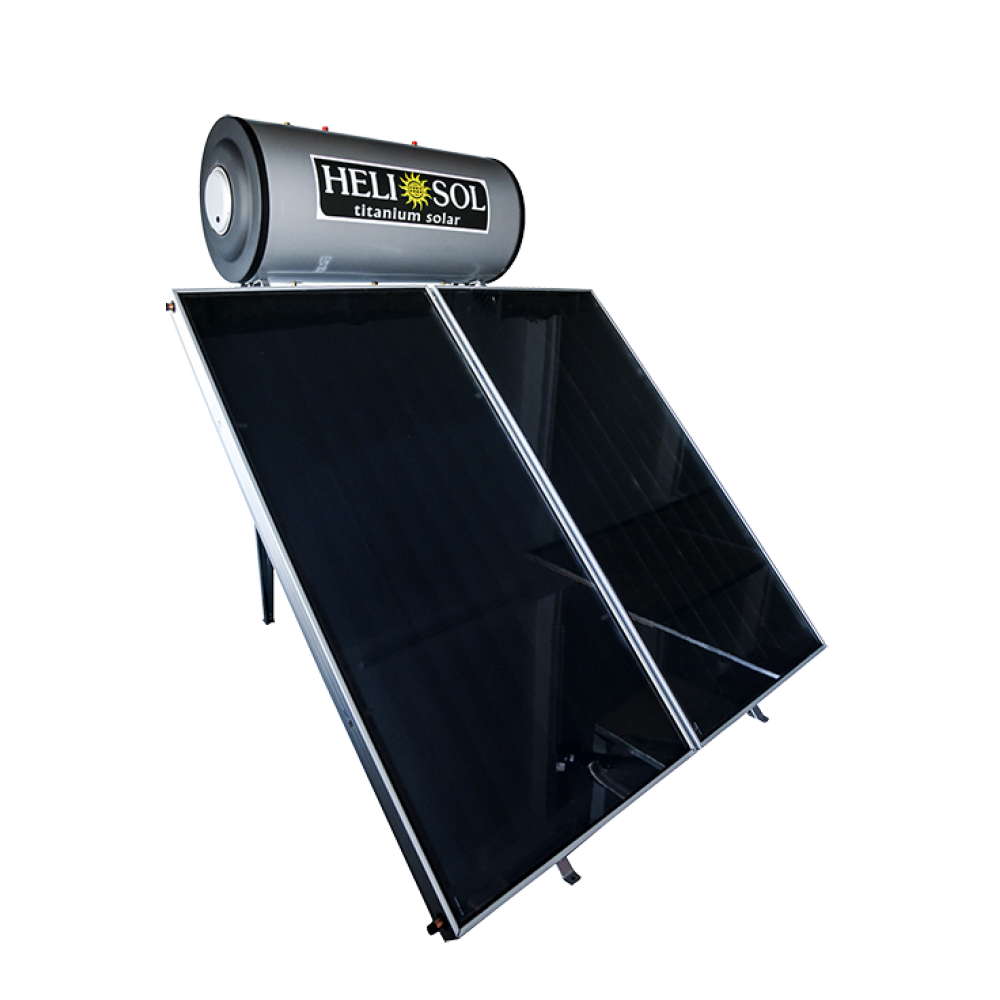

Thermosiphon system Heliosol, Model Titanium Solar 200L, Panels 2 x 2.05m²

Helisol Titanium Solar are highly efficient thermosiphon systems. The selective coating of the panels makes them appropriate for exploitation throughout all seasons.

  • Stock: Out of stock
  • Brand: Ecosystem
  • SKU: 01.301.023
£949.60
Excl. VAT
Add to Cart
Inquiry
Add to Wish List Compare this Product
Estimated delivery
22.Feb.2025
DHL Schenker
See Shipping Policy

Free return
​60 daysSee details

We accept payments
    See details

Product Features

  • The aluminum casing is designed to withstand the rough conditions of the outdoor environment and ensures long life of the product. The frame design provides for easy fixation and multiple mounting possibilities.
  • Rock wool insulation with excellent heat insulating capabilities keeps thermal loss at minimum even in harsh climate conditions.
  • The absorber is made of coated copper elements to transfer the heat from the sun into the heat-carrier.
  • The harp type absorber construction ensures low hydraulic resistance and economic energy consumption. Each unit is tested for liquid-tightness.
  • Protective solar glass Due to its prismatic pattern it captures even the indirect sun rays and directs them straight onto the absorber. It lets the sun rays in and restricts their reflection out of the collector. Being a low-iron glass (FeO ≤ 0.02 %) it has higher energy transmission rate than regular glass. It is heat-tempered to withstand the strains of the open environment such as wind, snow and hail.
  • UV resistant silicon seal. Specially designed meander-profile sealing ensures tight fitting of the glass pane to the aluminum framework. Made of durable solar grade silicon.
Characteristics
Weight (kg) 159.0000
Country of Manufacture Greece
Dimension Width (mm) 1020
Dimension Height (mm) 2020
Warranty 5 Years
Average power consumption (W) 240V/50Hz
Water tank volume (L) 200
Collector case thickness (mm) 90
Heat carrier fluid Propylene Glycol
Volume of heat carrier (L) 1.43
Thickness of solar glass (mm) 4mm
Water tank material glazed/enameled
Insulation Rock wool 50mm
Coating of absorber Selective coating
Material of absorber Titanium dioxide welded with laser technology in vacuum
Material of solar glass Heat tempered prismatic glass
Heat carrier pipes material/type copper
Material of collector case aluminium profile Al-Mg-Si
Heat carrier pipes diameter (mm) 10 / 22
