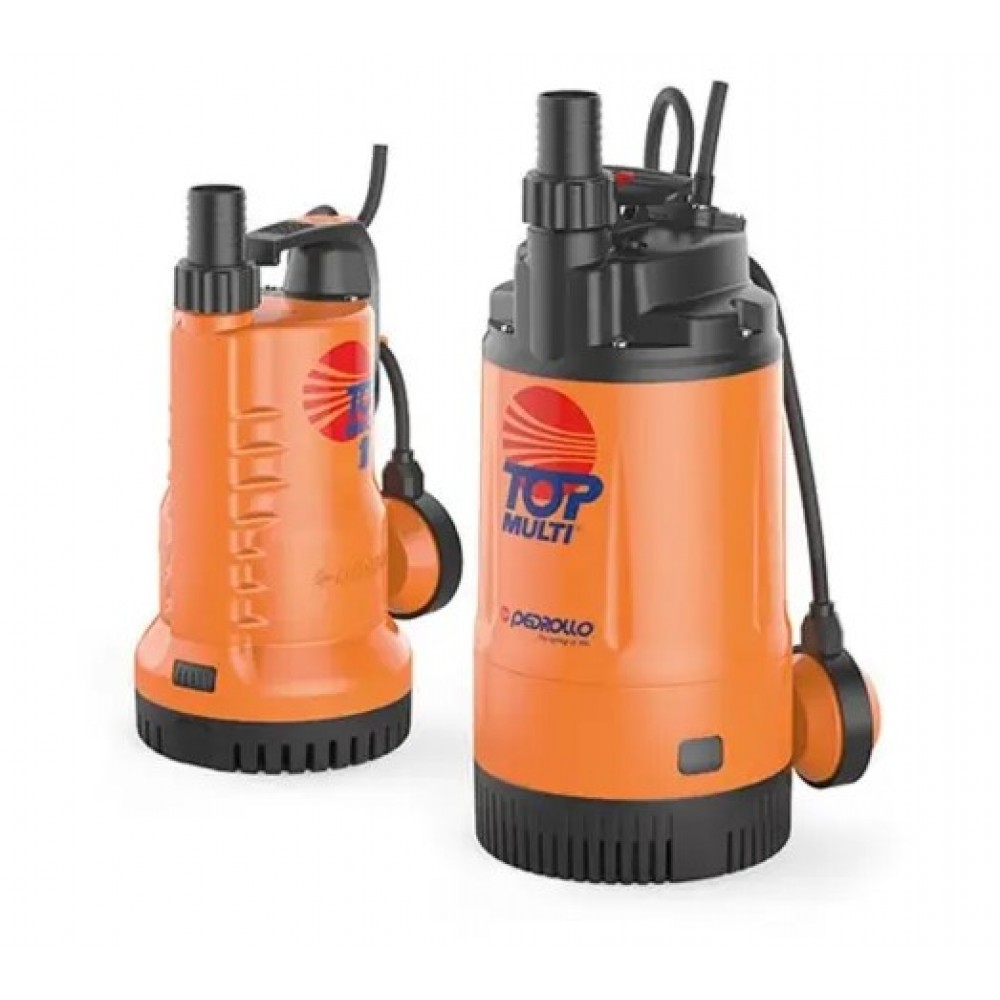

Submersible pump with external float Pedrollo TOP MULTI 2, multistage, power 0.55 kW, flow 80 l/min, head 42 m, suitable for gardens, wells, and other applications

TOP MULTI are submersible, multistage pumps , equipped with a 10 m. power cable "H07 RN-F" with Schuko plug, completely ready for use.
They are made of high quality technopolymers with excellent mechanical resistance , and the internal parts made of AISI 304 stainless steel provide strong corrosion resistance.
They are equipped with an external float (protects against dry running) and a check valve (prevents water from leaking from the pipe when the pump is not running).
A stainless steel filter in the suction base prevents impurities from entering.
Silent motor , maintenance-free, with thermal overload protection .

Advantages and applications:

• Easy installation

• Reliable operation in domestic conditions:

  • Water supply from wells or tanks

  • Hydrophore systems (with expansion vessel or electronic pressure switch)

  • Irrigation systems and sprinklers

  • Gardening

  • Car washes

Suitable for clean water and non-chemically aggressive fluids

Operating limits:

• Immersion depth: up to 10 m

• Liquid temperature: up to +40°C

• Pumping level: up to 22 mm from the bottom

Construction features:

• Body, pressure body and suction grille: glass technopolymer, corrosion and impact resistant, threaded connection according to ISO 228/1

• Impeller and diffuser: Noryl GFN2V

• Motor base: stainless steel AISI 304

• Shaft: stainless steel EN 10088-3-1.4104

• Double seal: mechanical seal made of ceramic-graphite-NBR, with oil chamber and internal lip seal

• Motor: single-phase 220-230V, 50Hz, asynchronous, with thermal protection and capacitor

• Power: 0.55 kW

• HP: 0.75

• Connection: 1¼“

• Insulation: class F

• Protection: IP 68

Standard features of TOP MULTI® II:

• External float

• Neoprene cable “H05 RN-F” – 10 m. with “Schuko” cleats

• Hose fitting with check valve
