Wood burning stove with back boiler Zvezda Vaya VR 9, 11.3kW
- Stock: In Stock
- Brand: Zvezda
- SKU: 08.435.283
You may also need
-400x400.jpg "Wood Stove Hearth Pad Oval, Black steel 2mm, Size 80x80cm")
-400x400.jpg "Wood Stove Hearth Pad Oval, Black steel 2mm, Size 80x80cm")
-400x400.jpg "Wood Stove Hearth Pad, Black steel 2mm, Size 60x80cm")
-400x400.jpg "Wood Stove Hearth Pad, Black steel 2mm, Size 98x98cm")
-400x400.jpg "Wood Stove Hearth Pad, Black steel 2mm, Size 98x98cm")

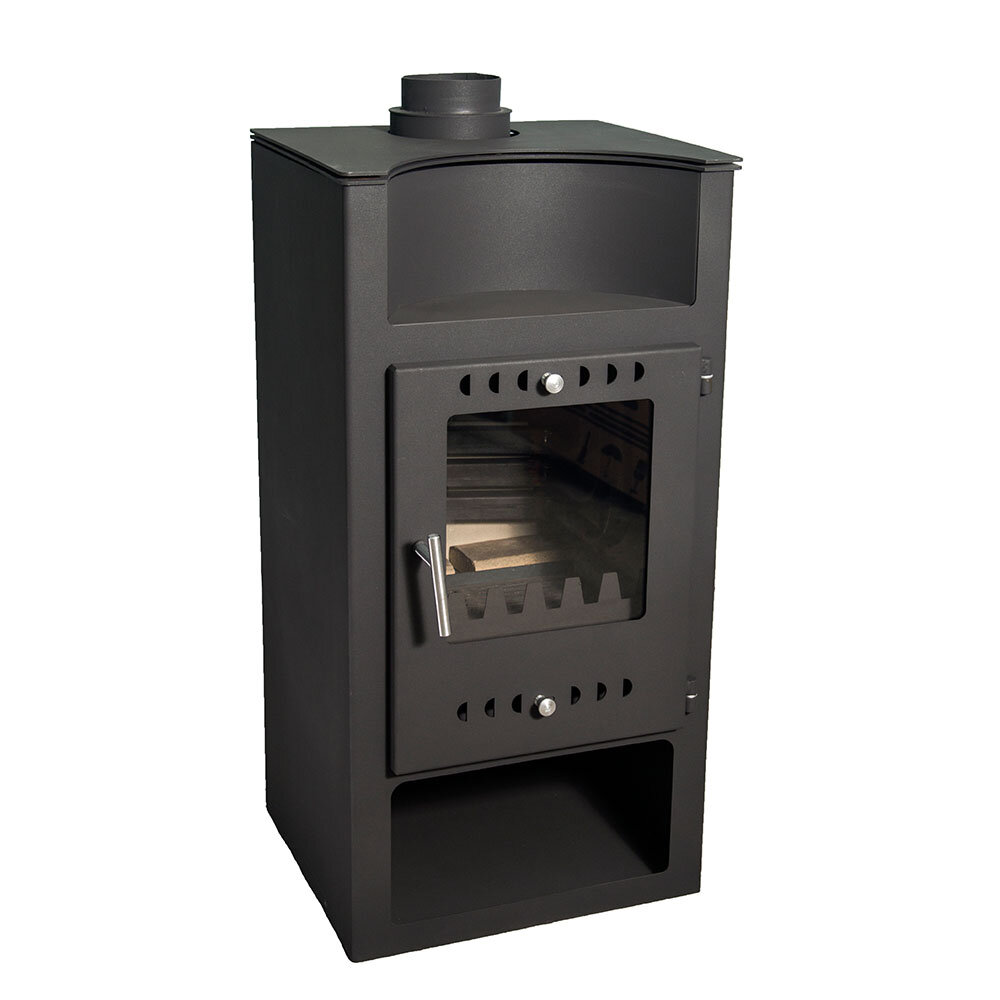

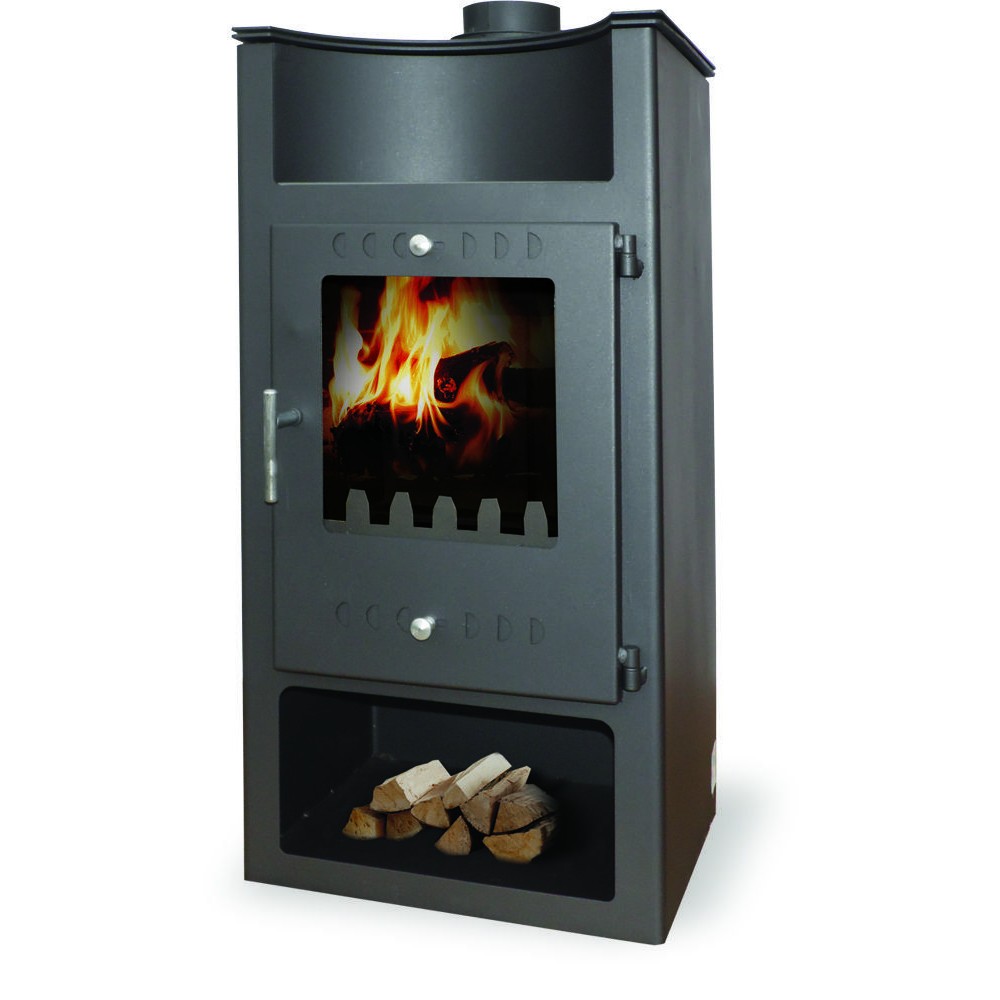

Wood burning stove with back boiler Vaya VR 9, 11.3 kW – efficient heating for the whole home
The wood burning stove with back boiler Vaya VR 9 in the elegant colour graphite black is a reliable heating solution that warms both the room and your central heating system. With a heat output of 11.3 kW, an approximate heated area of up to 70 m² and a heated volume of up to 170 m³, it is suitable for homes with a radiator installation. Made of sturdy steel, it combines durability, high performance and a stylish look.
Advantages of the Vaya VR 9 stove with back boiler

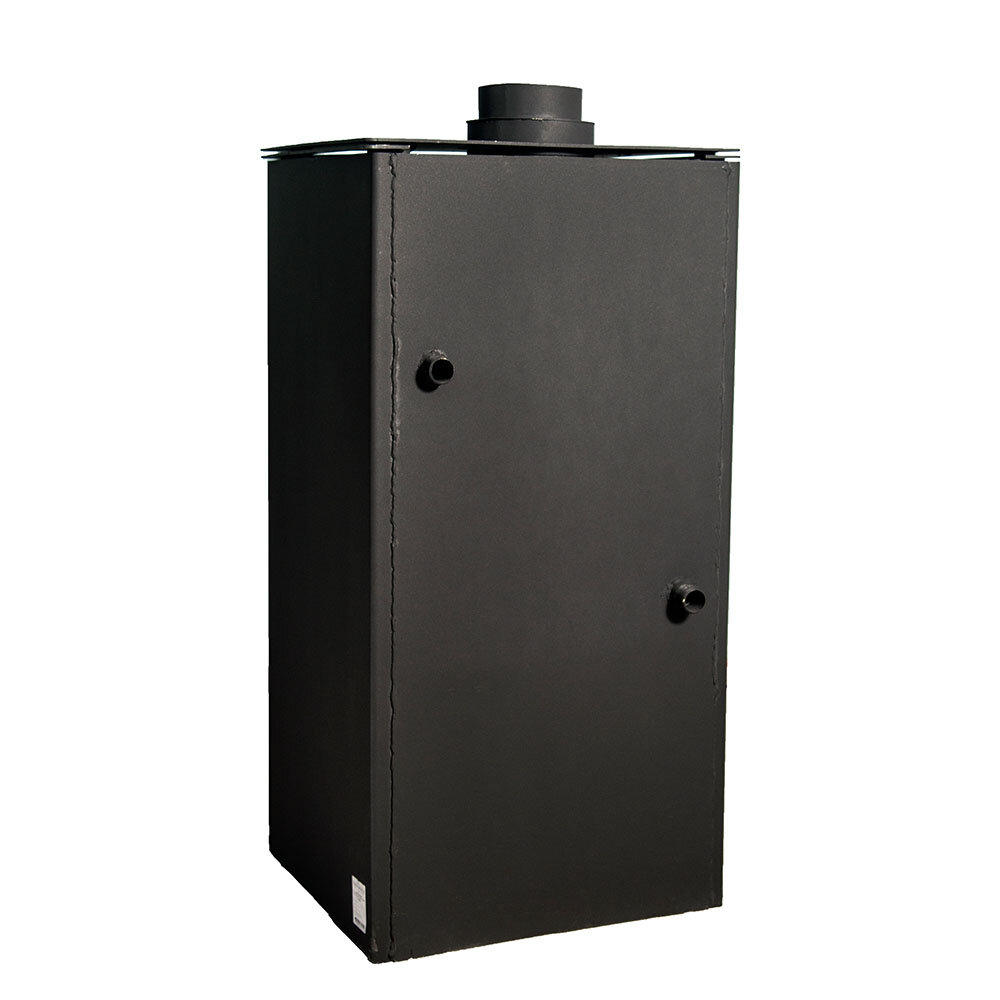

- Back boiler for the central heating system – allows connection to a radiator installation for heating the whole home.
- Thermal shock resistant glass ceramic – the combustion chamber is equipped with durable glass ceramic, which provides an excellent view of the flame.
- Cast iron grate – resistant to high temperatures and ensuring even burning.
- Combustion control valve – located at the front, it allows precise control over the intensity of the flame.
- Manual flue control valve – for precise regulation of the chimney draught.
- Secondary air valve – raises the combustion temperature and the efficiency of the appliance, while preventing the glass from blackening.
- Wooden door handles – comfortable and warm to the touch during operation.
- Wood storage niche – allows the wood to dry well before use for more efficient burning.
Output distribution
The total heat output of 11.3 kW is distributed between 7.1 kW heat transfer to the back boiler and 4.2 kW radiated heat into the room, which provides a balance between heating the radiators and direct comfort in the room. With a working pressure of 1 bar, the stove integrates easily into a standard heating system.
Efficiency and energy class
With energy class A, an efficiency of 70% and certificate CE, the Vaya VR 9 stove guarantees economical wood consumption and eco-friendly burning. The flue diameter is 130 mm, which allows easy connection to a standard chimney system.
Technical parameters
| Heat output | 11.3 kW |
| Back boiler output | 7.1 kW |
| Radiated heat | 4.2 kW |
| Approximate heated area | 70 m² |
| Approximate heated volume | 170 m³ |
| Efficiency | 70% |
| Energy class | A |
| Working pressure | 1 bar |
| Certificates | CE |
| Colour | Graphite black |
| Construction material | Steel |
| Weight | 95 kg |
| Width | 530 mm |
| Height | 990 mm |
| Depth | 490 mm |
| Flue diameter | 130 mm |
Attention!
- Do not use without radiators and/or convectors installed. Burning wood in the stove with an empty back boiler will cause it to crack.
- Reaching the desired output depends on:
- The chosen fuel with the required calorific value and moisture content
- The subsequent lighting and fuel loading
- The regulation of the primary and secondary air
- The regulation of the chimney draught
- The effective air exchange, etc.
Recommendations
- We recommend that the central heating system be of the open type. All parts of the system must be protected from freezing. For systems with forced circulation, it is advisable to fit a UPS to the circulation pump.
- If there are copper elements in any part of the system, it must be protected from electrolysis by adding a magnesium anode or a similar type of protection.
