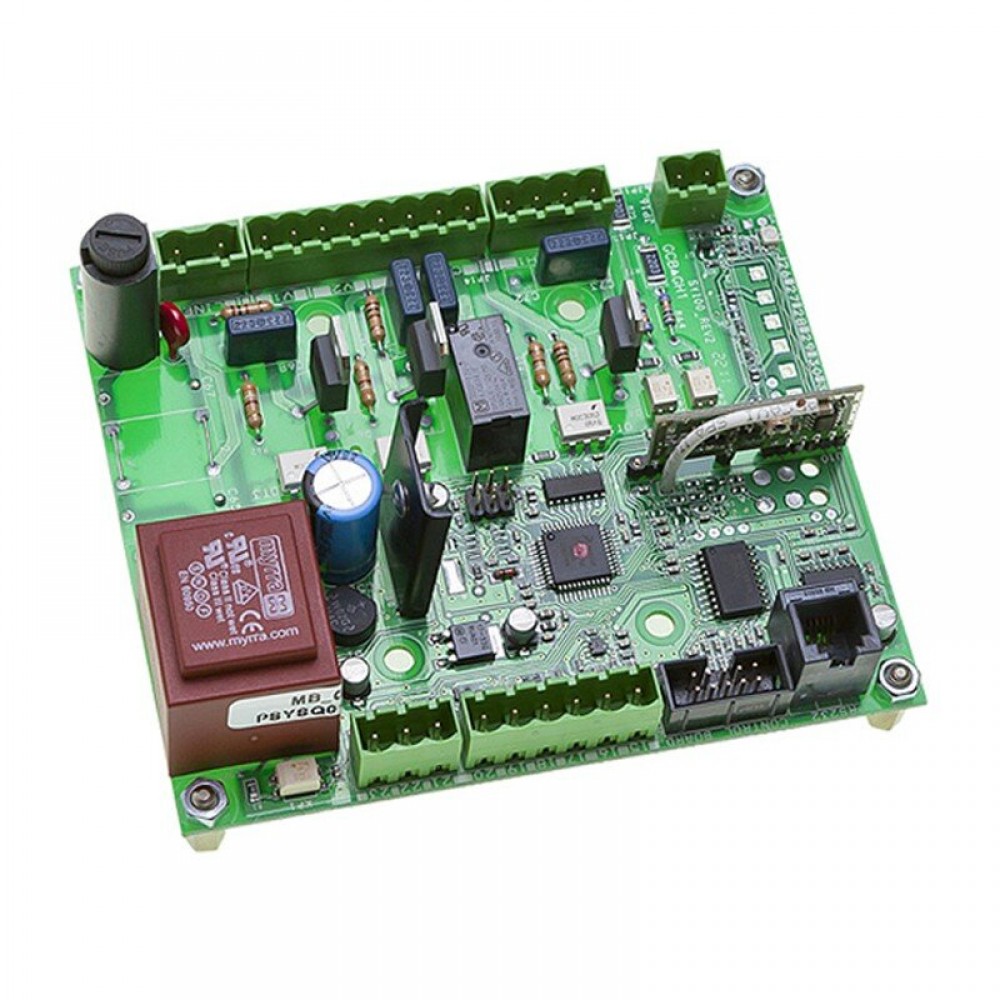

Мainboard TIemme SY100_ARIA for pellet stoves Clam, Moretti Design and others

Italian motherboard for direct pellet stoves:

Models Sirio, Sirio+, Astra, Astra+, Venere, Venere+, Vega and Vega+ by Clam.

All air models and models with additional air ducting by Moretti Design.

Stock: In Stock
Brand: Tiemme
SKU: 16.449.020

£152.00

Excl. VAT

2 or more £136.80

3 or more £129.20

Qty

Add to Cart

Inquiry

Add to Wish List Compare this Product

Estimated delivery
28.Nov.2024

See Shipping Policy

Free return
60 daysSee details

We accept payments
See details

Description
Characteristics

The easy and reliable operation software with advanced functions allows the SY100 mainboard to be installed on almost every type of Air (direct) pellet stoves. It also has advanced functions that are accessible by technicians who can adjust the operating parameters via the keyboard/display or via a computer with RS232 interface connection.

The display provides two menus and programming types:

user menu to modify parameters of:

- starting and switching off, operating power output, operating temperature adjustment, manual pellet loading, pellet loading regulation, combustion ventilation, programming of the room temperature.

technical menu to operate the advanced parameters for:

- endless pellet feeder operation, ventilation, combustion, thermostats, timers, output enabling, operating check-up, starting, modulation, pressure switch configuration etc.

Compatible with the following TiEmme Elettronica displays: CP100 - CP110 - CP120 - K100 - LCD100 - LCD200 - EasyTouch 4.
Equipped with remote control receptacle board, which regulates switching on/off and power output.

For stoves CLAM Aria Cod. 05011151 Mod. Sirio - Sirio+ - Astra - Astra+ - Venere - Venere+ - Vega - Vega+

Characteristics
Weight (kg)	0.5000
Country of Manufacture	Italy
Warranty	6 months
MPN	14710001
Electric power supply (V/Hz)	220-240/ 50-60
Type	Mainboard
Compatibility	Moretti Design, Clam
