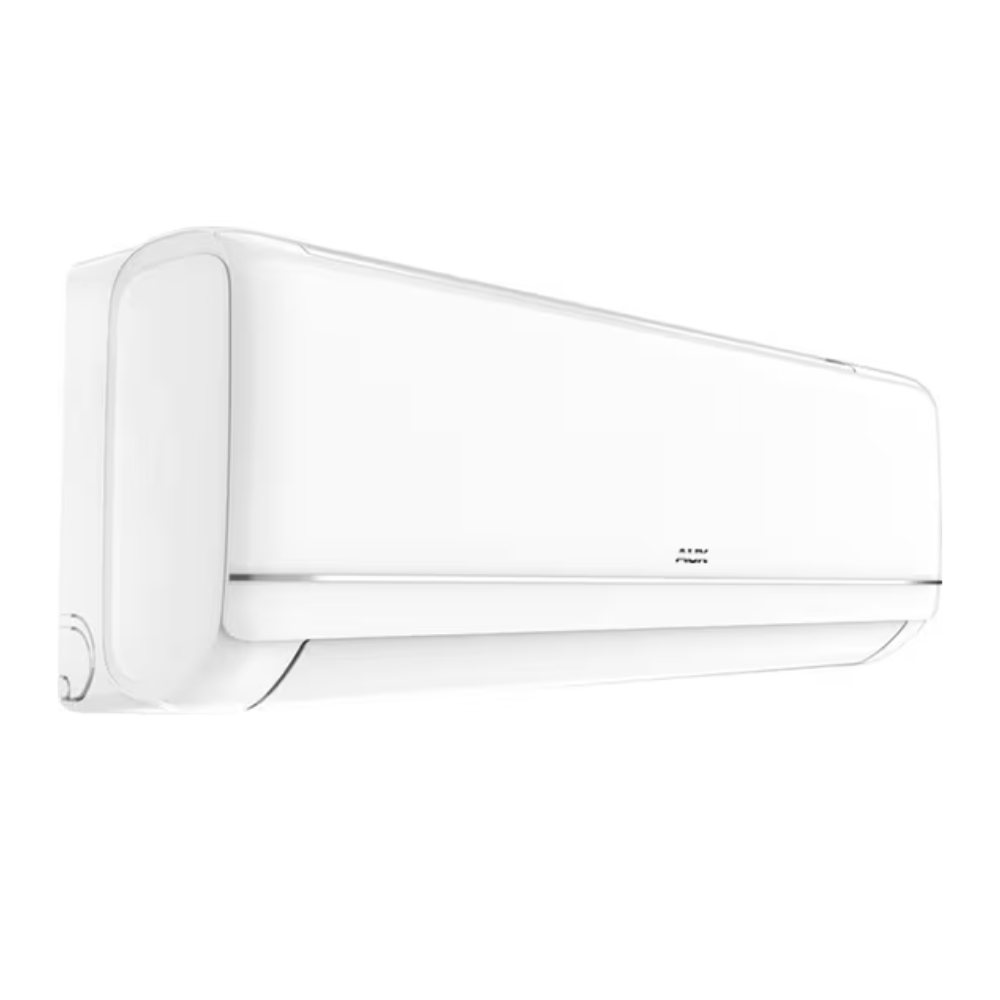

Inverter air conditioner with WiFi AUX Q Plus Series, 24000 BTU
- Stock: In Stock
- Brand: AUX
- SKU: 04.333.051
Cooling

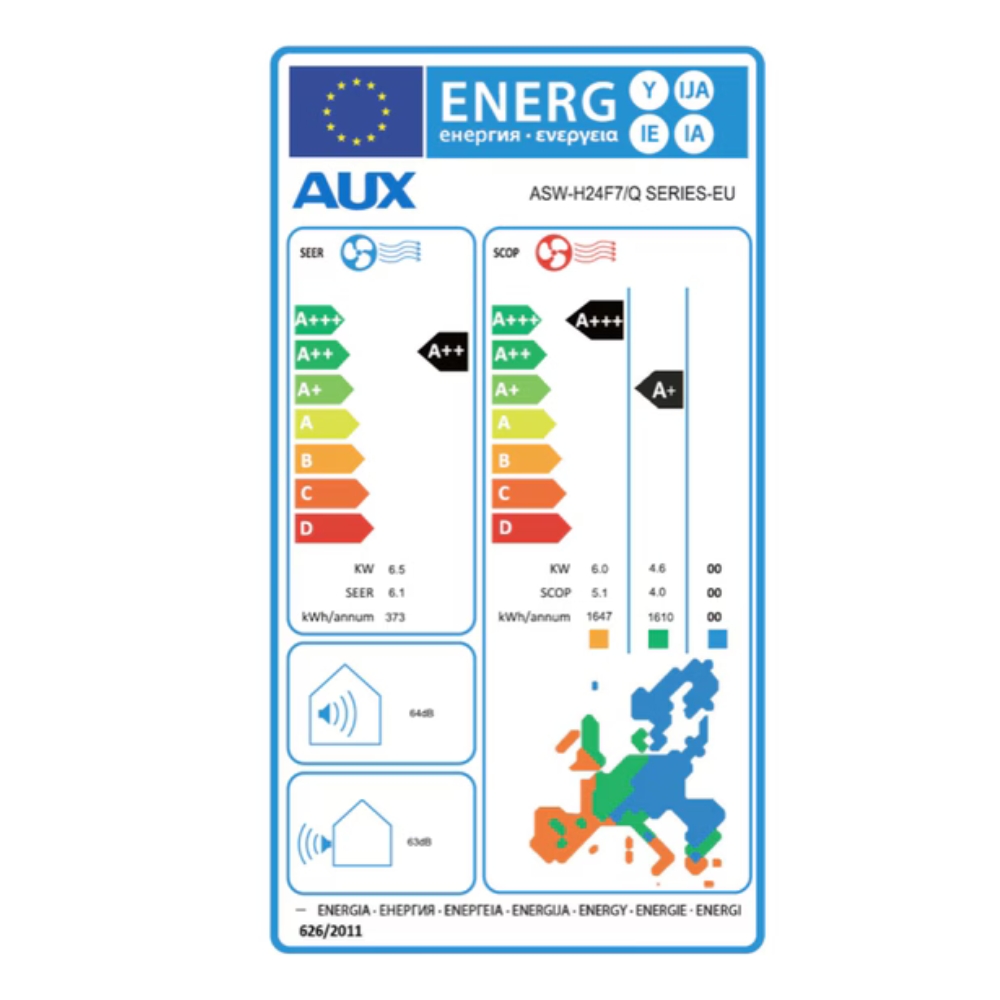

Energy class A++
SEER: 6.1
Heating
Energy class A+
SCOP: 4.0
Why choose Q-Plus air conditioner?
PM2.5 Filtration
Absorbs dust particles, bacteria and allergens down to 2.5 microns
Active ventilation
Fresh air from outside + multi-stage filtration for purification
Automatic self-cleaning
Removes accumulated dust and prevents mold
WiFi smart control
Full control from smartphone + automatic diagnostics
Frost protection
Additional heater operates down to -20°C outdoor temperatures
100% DC Inverter
Operates from -15°C to +46°C - ideal for all seasons
Sleep mode
Quiet operation of 32 dB and optimal temperature for a peaceful sleep
Environmentally friendly
R-32 refrigerant with zero ozone impact
For large spaces
Cooling capacity 6.7 kW and heating 7.2 kW
Self-diagnosis
Automatically detects faults and displays codes
Ideal size
For rooms up to 50 square meters
Powerful
24,000 BTU air conditioning for cool and warm air in large spaces
Technical specifications
| Model | AUX Q-Plus ASW-H24F7B4/QCR3DI-B9 |
| Rated power (cooling) | 6.7 kW (24,000 BTU) |
| Rated power (heating) | 7.2 kW |
| SEER coefficient | 6.1 |
| SCOP coefficient | 4.0 |
| Voltage | 220-240V / 50Hz |
| Refrigerant | R-32 (environmentally friendly) |
| Operating temperature - cooling | -15°C to +46°C |
| Operating temperature - heating | Up to -20°C outdoor temperatures |
| Noise level (indoor unit) | 32 / 37 / 42 / 50 dB(A) |
| Noise level (outdoor unit) | 58 dB(A) |
| Recommended capacity | 45-50 square meters |
| Dimensions (indoor unit) | 1090 x 328 x 227 mm (W x H x D) |
| Dimensions (outdoor unit) | 900 x 700 x 350 mm (W x H x D) |
| Weight (internal/external) | 12.5 kg / 39 kg |
| WiFi control | Included in the kit |
Multi-stage filtration with PM2.5 system
The Q-Plus series are equipped with the latest air purification system:
- ✓ PM2.5 filtration- captures 99% of dust particles smaller than 2.5 microns
- ✓ Removesdust, bacteria, viruses, allergens and unpleasant odors
- ✓ Multi-level system- multiple levels of filtration for maximum purity
- ✓ Natural ventilation- delivers fresh air from outside with purification
- ✓ Ideal for asthma and allergies- significantly improves air quality
WiFi control and automatic diagnostics
Control your air conditioner from your smartphone anywhere and receive instant notifications in case of problems:
- ✓Remote on/off and temperature control
- ✓Mode selection (cooling, heating, ventilation, drying)
- ✓Schedule and timer programming
- ✓Energy consumption monitoring
- ✓Automatic self-diagnosis - displays codes in case of malfunction
- ✓Push notifications for errors for quick service response
Basic operating modes
Cooling: Maximum cooling capacity of 6.7 kW for fast cooling of large spaces.
Heating: Powerful heating system of 7.2 kW with protection down to -20°C outdoor temperatures.
Sleep mode (Night): Reduced power with quiet operation (from 32 dB) and optimal temperature for a peaceful sleep.
Ventilation: Circulates the air with its filtration through the multi-stage PM2.5 system.
Drying: Removes humidity without strong cooling - ideal for humid days and mobility.
Clean and healthy air system
PM2.5 Multi-stage filtration
Captures 99% of dust particles, bacteria and allergens. Ideal for people with asthma and allergies.
Multi-stage sterilization
Different levels of purification kill bacteria and viruses. Natural air disinfection.
Automatic self-cleaning
Removes accumulated dust from the evaporator and dries it. Prevents mold and unpleasant odors.
Active fresh air system
Delivers fresh air from outside through the filter module. Unlimited freshness all day long.
Tips for maximum energy savings
1. Maintain optimal temperature (22-24°C) - Every degree lower reduces costs significantly
2. Close doors and windows during cooling and heating
3. Use Sleep mode at night to reduce consumption
4. Regular filter cleaning - at least every month for optimal performance
5. Turn on active ventilation in transitional periods for freshness without energy
6. Set up WiFi control for automated control according to your schedule
7. Annual technical inspection to maintain optimal performance
