Pellet Burner BURNiT Pell 90, 30-90kW

A pellet burner with self-cleaning function, part of series BURNiT PELL, in order to achieve energy and money economy as well as to suspend the costly petrol heating.

  • Stock: In Stock
  • Brand: BURNiT
  • SKU: 08.440.007
£2,426.81
£2,696.46
Excl. VAT
Estimated delivery
18.Dec.2024
DHL Schenker
See Shipping Policy

Free return
​60 daysSee details

We accept payments
    See details

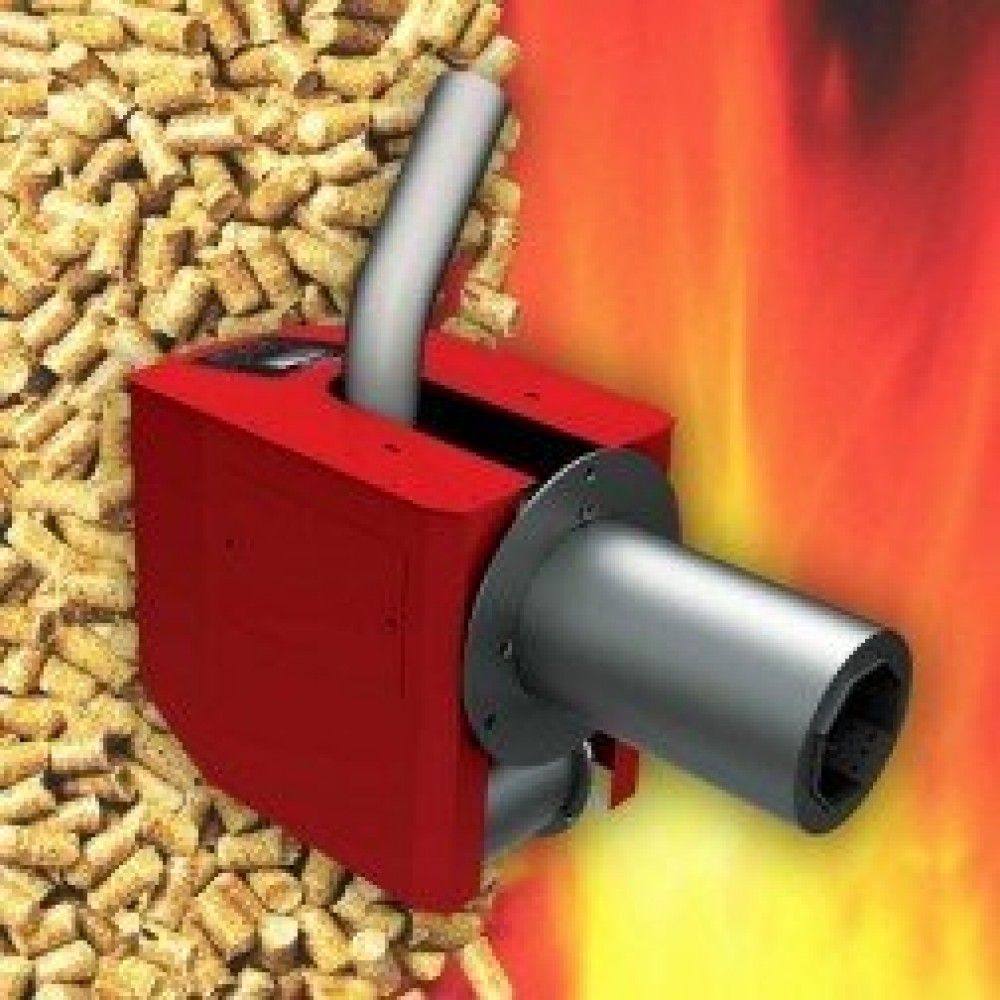

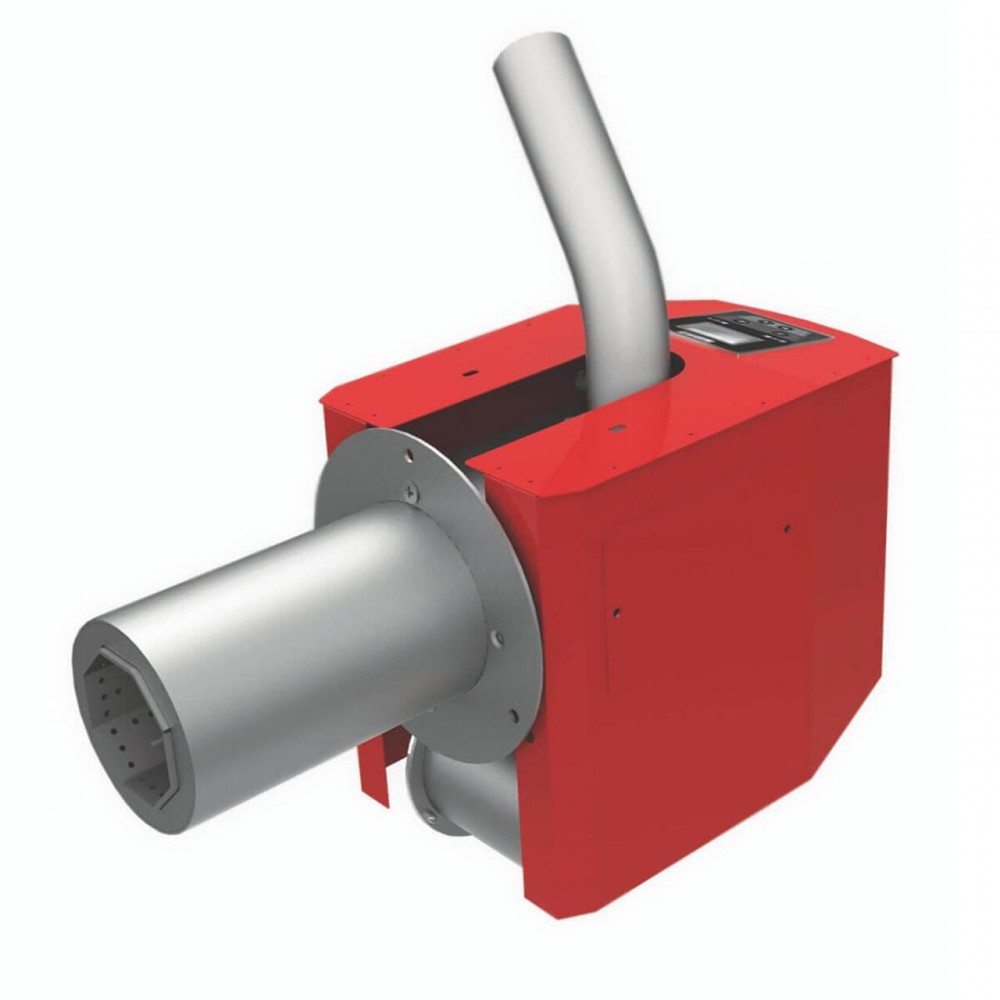

The BURNiT Pell is a pellet burner for heating boilers. It burns wood-pellets with diameter 6-8 mm. It ensures an efficient and low-emission combustion. Produced of high-grade stainless steel, it withstands temperatures up to 1000°С. The built-in CPU-controlled unit, automatic cleaning system and internal auger manage the burner operation for optimum efficiency.



Product Features

  • Built-in control unit:

  1) fully automated ignition and pellet feed;
  2) self-cleaning function, activation of one to four times every 24 hours;
  3) controls the operation of  the circulation pump of the central heating;
  4) controls the operation of the pump of the domestic hot water;
  5) option for control by room thermostat;
  6) timer;
Photo sensor -  monitors the power of the burner flame Internal auger

  • The feeder chute allows 360° rotation for its best convenient positioning when connecting the pellet auger to the hopper
  • Dry contact-less resistance heater assuring ignition of fuel

 Innovative cleaning system of the combustion chamber

  • Air feed fan, step-regulated  (0% ÷100 %)

Safety devices:

1) Elbow-shape feeder chute prevents backfire entry from burner into pellet hopper;
2) Thermostatic protection 80°С . When the surface of the feeder chute reaches 80°С, the control stops the feeding of pellets into the burner and signals for fault Fuse 3,15 А;
3) In case of power interruption, all parameter settings are stored in the memory of the controller.
4) Upon the subsequent restart of the burner, the controller resumes the execution of the program from the point when the power interruption occurred.

Characteristics
Weight (kg) 28.0000
Country of Manufacture Bulgaria
Electric power supply (V/Hz) 230/50
Range of heat output (kW) 30 - 90
Combustion efficiency (%) 99
Control of central heating pump Yes
Heat output (kW) 90

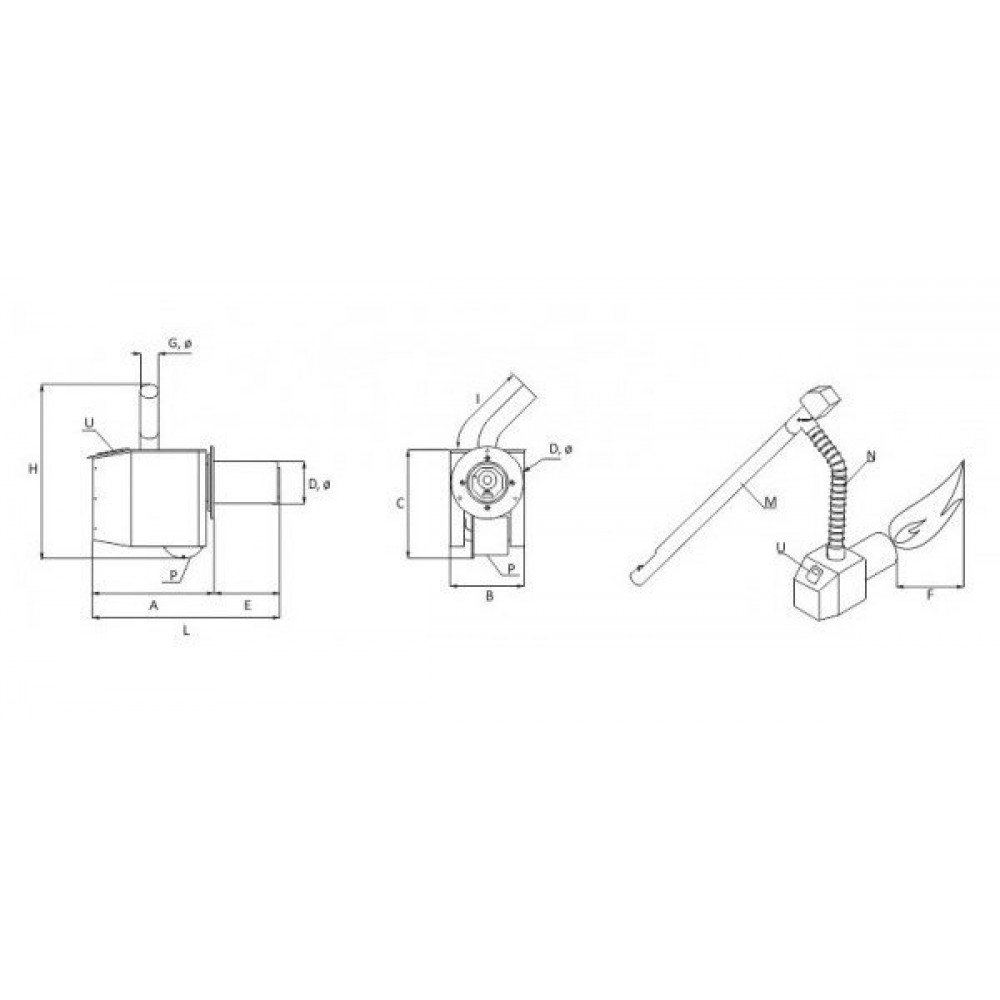

Overall burner dimensions (Height, Length, Width), mm 575x350x750
Heat output regulation Yes
Automatic cleaning system Yes
Min. recommended size of boiler combustion chamber (Height). mm 500
Min. recommended size of boiler combustion chamber (Width), mm 500
Min. recommended size of boiler combustion chamber (Depth), mm 600
Burner operating noise level - Burner (dB) 40 - 45
Burner operating noise level - Auger (dB) 10
Burner operating noise level - Self Clenaning (dB) 65 - 67
Built in CPU control unit Yes
Approximate burner flame length (mm) 1600
Pellet auger dimensions (Diameter, Length), mm 75x1500/2000/3000
Weight of auger (kg) 5.5/ 7/ 8
