Pellet Burner BURNiT Pell 25, 5-25kW

A pellet burner with self-cleaning function, part of series BURNiT PELL, is a perfect companion for a BURNiT WBS solid fuel boiler and a hassle free solution for replacing the old costy diesel burner.

  • Stock: In Stock
  • Brand: BURNiT
  • SKU: 08.440.003
£1,043.09
£1,158.99
Excl. VAT
Estimated delivery
18.Dec.2024
DHL Schenker
See Shipping Policy

Free return
​60 daysSee details

We accept payments
    See details

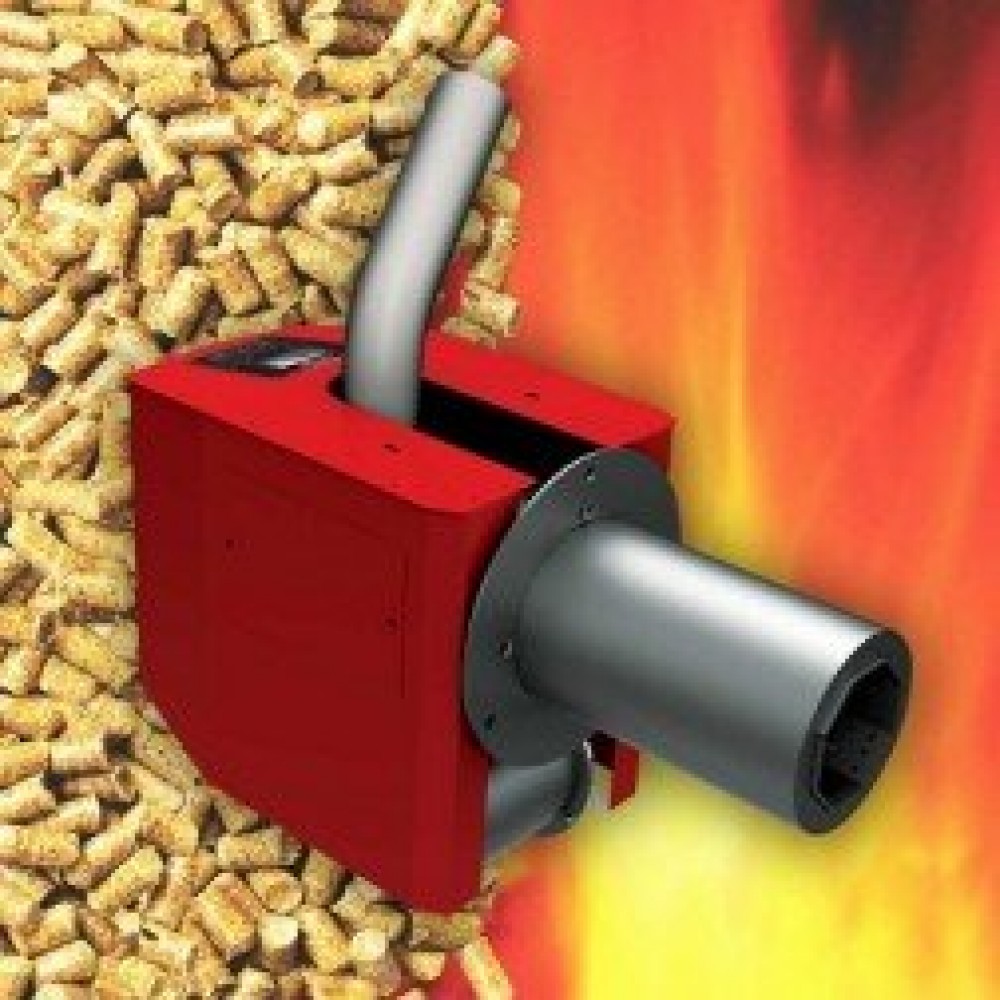

The BURNiT Pell is a pellet burner for heating boilers. It burns wood-pellets with diameter 6-8 mm. It ensures an efficient and low-emission combustion. Produced of high- grade stainless steel, it withstands temperatures up to 1150°С. The built-in CPU-controlled unit, automatic cleaning system and internal auger manage the burner operation for optimum efficiency. The burner has to be fitted to boiler.

Available sizes, kW: 25, 30, 40, 70, 90, 150

Product Features

  • Built-in control unit:
    - fully automated ignition and pellet feed;
    - self-cleaning function, activation of 1 to 6 times every 24 hours;
    - controls the operation of  the circulation pump of the central heating / buffer tank;
    - controls the operation of the pump of the domestic hot water;
    - option for control by room thermostat;
    - timer with weekly programmer;
  • Temperature sensor to monitor boiler temperature
  • Temperature sensor to monitor water heater temperature
  • Two temperature sensors to monitor buffer tank temperature
  •  An option for chimney fan control.
  • Photo sensor -  monitors the power of the burner flame
  • Internal auger
  • The feeder chute allows 360° rotation for its best convenient positioning when connecting the pellet auger to the hopper
  • Dry contact-less resistance heater assuring ignition of fuel
  • Innovative cleaning system of the combustion chamber using compressed air
  • Air feed fan, step-regulated  (0% ÷100 %)

Safety devices

- Elbow-shape feeder chute prevents backfire entry from burner into pellet hopper;
- Thermostatic protection 80°С . When the surface of the feeder chute reaches 80°С, the control stops the feeding of pellets into the burner and signals for fault
- Fuse 10 А;
- In case of power interruption, all parameter settings are stored in the memory of the controller.
- Upon the subsequent restart of the burner, the controller resumes the execution of the program from the point when the power interruption occurred.

Schematic of the main features of a Pellet Burner BURNiT Pell

Schematic of the main features of a Pell Pellet burner





1. Pellet burner
2. Flexible connection

3. Electric motor
4. Automatic pellet-feeding auger
5. Control unit
6. Feeder chute
7. Casing
8. Combustion chamber housing
9. Combustion chamber
10. Automatic cleaning system









Characteristics
Weight (kg) 17.0000
Country of Manufacture Bulgaria
Electric power supply (V/Hz) 230AC/ 50
Range of heat output (kW) 5 - 25
Combustion efficiency (%) 99
Control of central heating pump Yes
Heat output (kW) 25

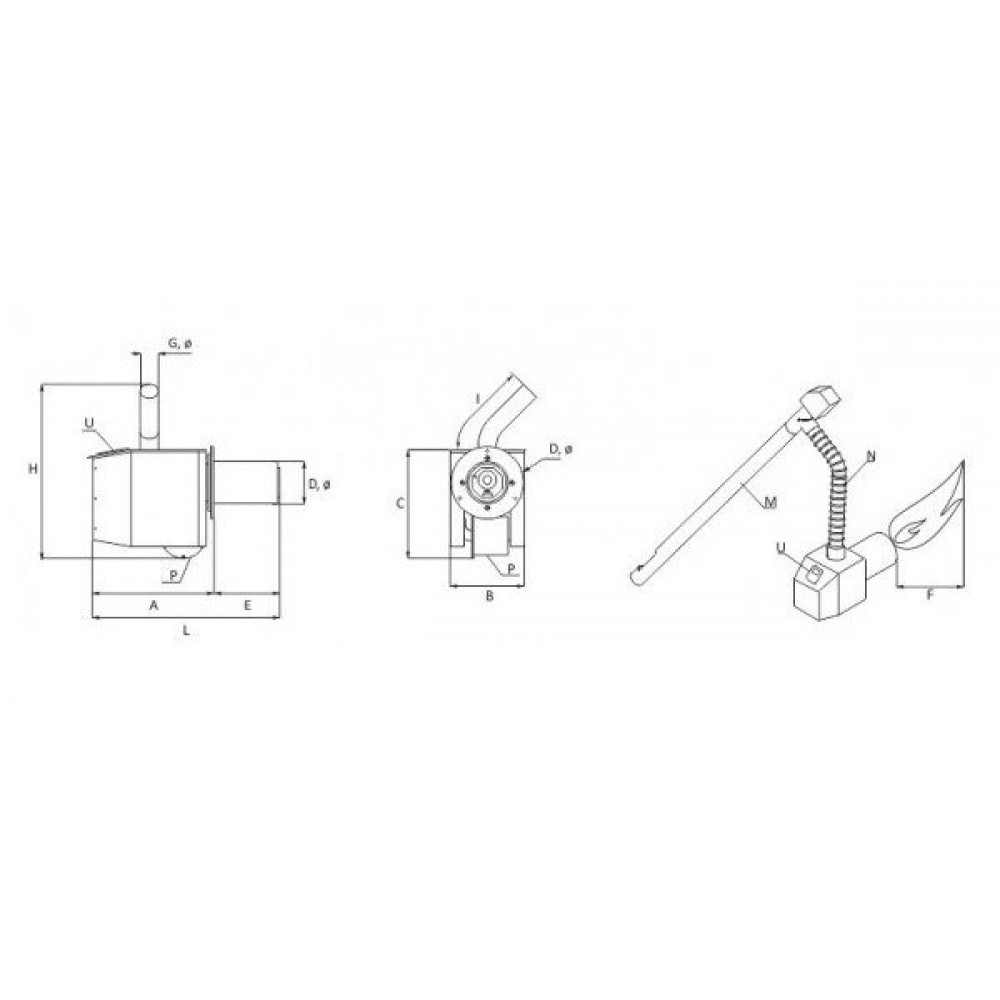

Overall burner dimensions (Height, Length, Width), mm 575x246x615
Heat output regulation Yes
Automatic cleaning system Yes
Min. recommended size of boiler combustion chamber (Height). mm 250
Min. recommended size of boiler combustion chamber (Width), mm 250
Min. recommended size of boiler combustion chamber (Depth), mm 290
Burner operating noise level - Burner (dB) 40 - 45
Burner operating noise level - Auger (dB) 10
Burner operating noise level - Self Clenaning (dB) 65 - 67
Approximate burner flame length (mm) 750
Pellet auger dimensions (Diameter, Length), mm 75x1500/2000/3000
Weight of auger (kg) 5.5/ 7/ 8
